SB-219ST
SUS Etchant
Sand Blast-219ST is an etchant which is used for sand blast process of SUS surface with wet corrosion method. SB-219ST is developed considering effects on human body and environment, provides high quality surface by etching, and does not corrode material and facilities.
[Features]
• Provides easier working condition compared to dry corrosion method
• Provides clean surface by removing oxide scale etc. at the same time of etching
• Nearly no acid gas generated, and no excessive corrosion of material and facilities
• Easy to do post process such as filming, etc.
[ Properties and method ]
| Appearance | Brown transparent liquid | Concentration | Original/undiluted |
|---|---|---|---|
| Odor | Unique odor | Temp. | Room temp. ~ 60℃ |
| pH(1%) | 1.0 ± 0.5 | Method | Dipping, spray |
| S/G (g/ml) | – | Packing | 20kg (pail) / 200kg (drum) |

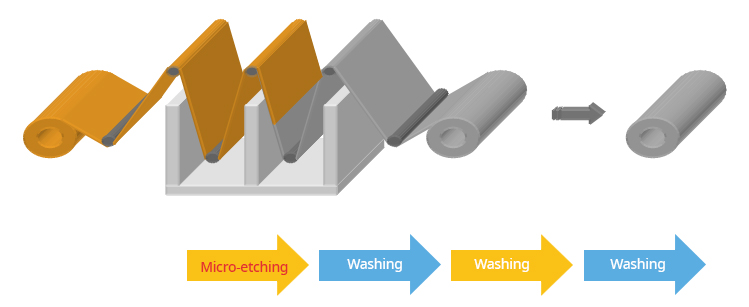

[ Etching process ]

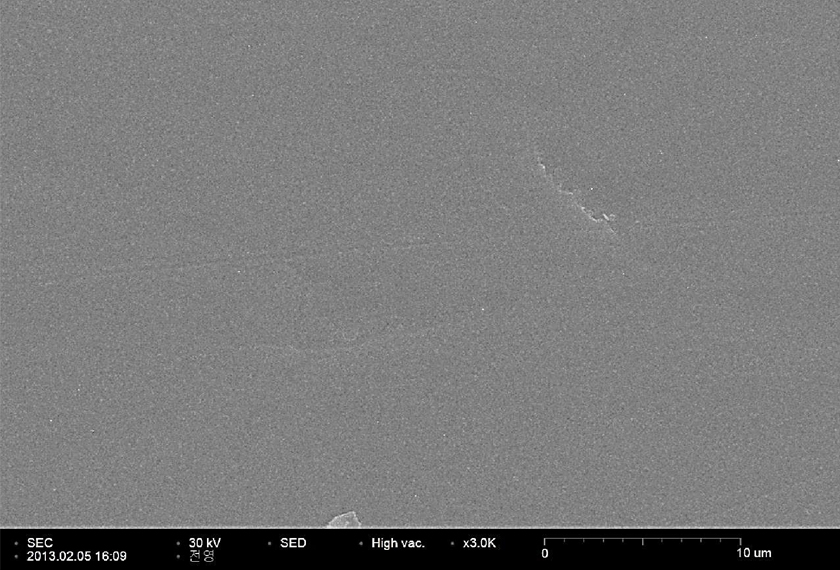

[Wet corrosion S/B result – SEM analysis ]

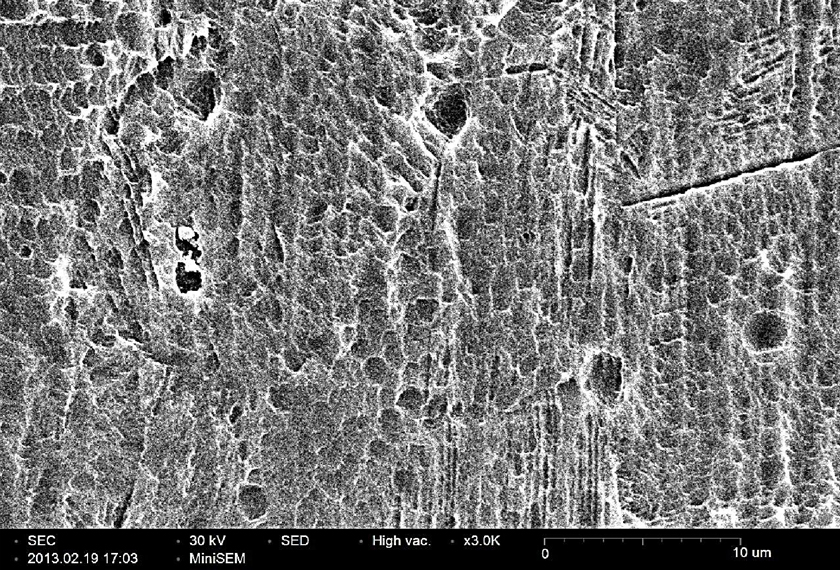

| Wet corrosion S/B treatment result of SUS sample: SEM (x3,000) |
 |
 |
