CleanSafe-717
Eco-friendly Vapor Degreasing Organic Cleaner
CleanSafe-717 is a low-toxic and low-pollution cleaner which does not contain ozone depletion and toxic properties of existing cleaners. It does not cause corrosion on metal, and provides excellent cleaning power on organic substances (oil, Si, etc.) with high solvency. Additionally, CS-717 provides good usage efficiency from excellent recycling properties.
[Features]
• Chemically stable – no transmutation or corrosion of metal and other material (Applicable to Al, Cu, etc.)
• Easily gets rid of contaminants such as oil, dusts and etc. on all sort of metal, material and equipment
• Eco-friendly cleaner without toxicity to human body and environmental issues (VOC unregulated, zero ODP)
• Shows high detergency (KB value : 102, low surface tension)
• Nonflammable
• Active organic cleaner with excellent solvency
• Not subject to environmental regulations
[Properties and method]
| Appearance | Colorless transparent liquid | Concentration | Original/undiluted |
|---|---|---|---|
| Odor | Weak alcohol odor | Temp. | Room temp. |
| pH(1:1) | 7.0 ± 1.0 | Method | Dipping / dipping ultrasonic / vapor degreasing / spray |
| S/G (g/ml) | 1.26 ± 0.02 | Packing | 20kg (pail) / 200kg (drum) |
[ Applications ]

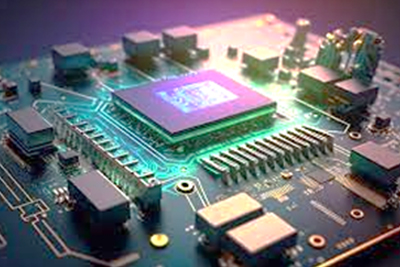

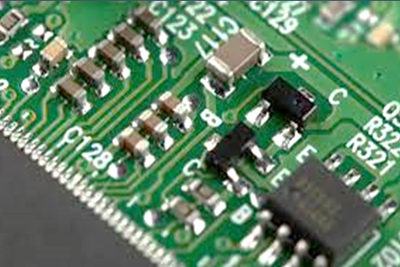

• Flux cleaning of SMT and electronic circuits, and cleaning of electronic circuits.
• Cleaning of contaminants and foreign substances
 |
 |

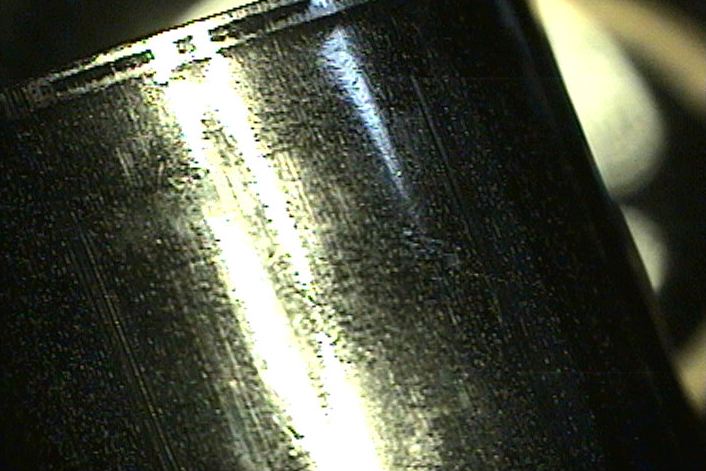

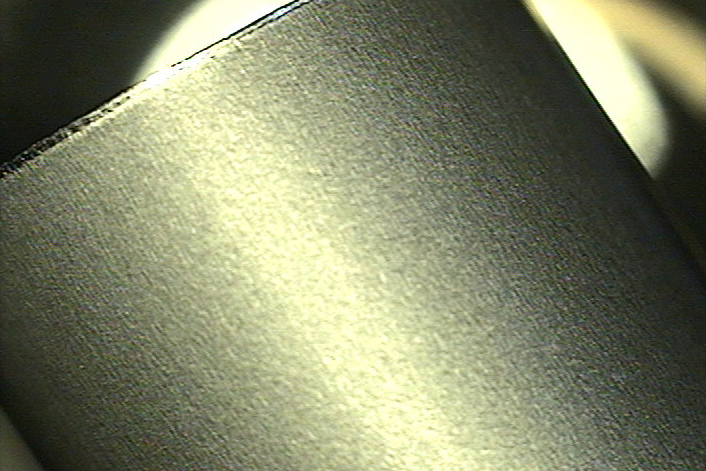

[ Application Case 1 : Removal of oil on a condenser ]
| Before | after |
|---|---|
 |
 |

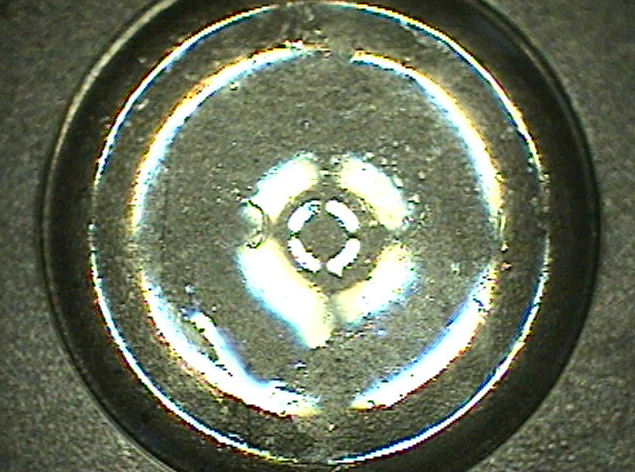

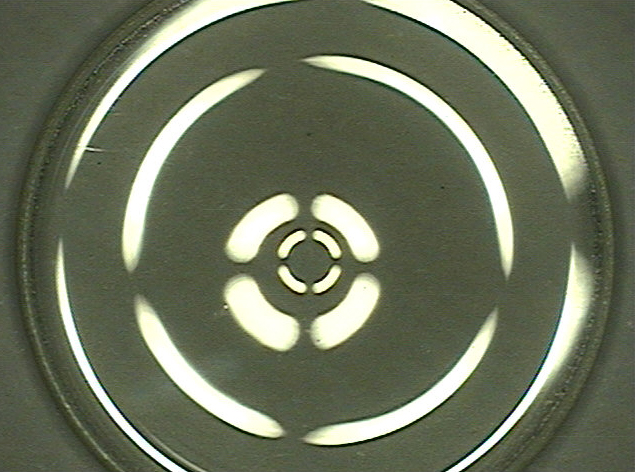

[ Application Case 2 : Cleaning oil on a lens ]
| Before | after |
|---|---|
 |
 |

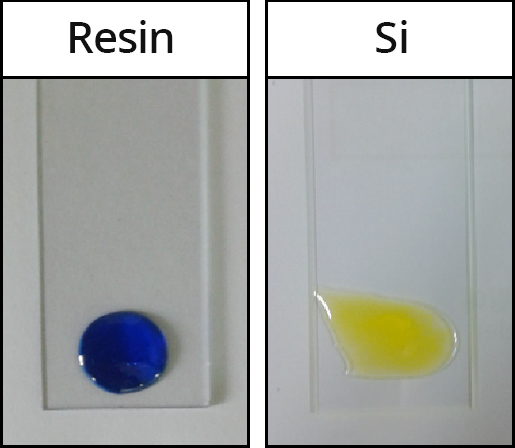

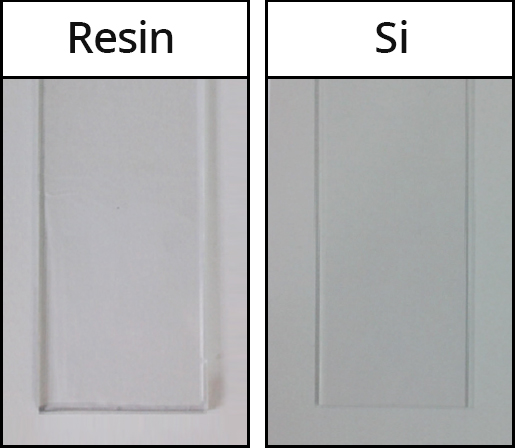

[ Application Case 3 : Dissolution of resin & Si ]
| Before | after |
|---|---|
 |
 |
