JYTA-series
Thermal radiation copper pin
[Application]
Used for smart power module(SPM), intelligent power module(IPM) and etc. which are key components of inverter
[Structure]

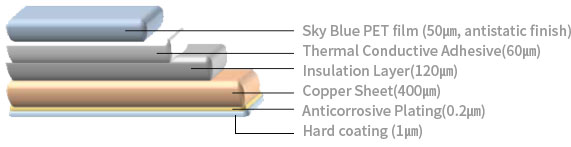

![JYHS-series](https://www.cychem.co.kr/en/wp-content/uploads/sites/4/2018/05/JYHS-series.jpg)
[Properties]
Item | Measurement | Value | |
---|---|---|---|
Thickness | ㎛ | 580 ± 2% | |
Thermal conductivity* (Resin layer vertical direction) |
W/mK | 1.83 | |
Insulation properties | Horizontal | – | 5KV, 10^4MΩ ↑ |
Vertical | – | 5KV, 10^4MΩ ↑ |
*: ASTM D 5470

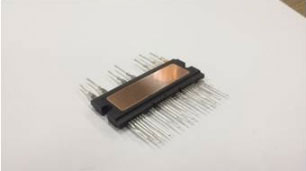

[Condition of adhesion and hardening]
Lead frame bonding | 135℃ / 10kgf / 1min. |
---|---|
Complete hardening | 160℃ / 2hrs. |
![]() |
![]() |
