JYHS-series

Hybrid Sheet

[Features]

• High functional laminated sheet which functions as EMI shielding, electric conduction, thermal radiation, light shading, and cushion
• Functions and thickness are adjustable as per customers’ requirements

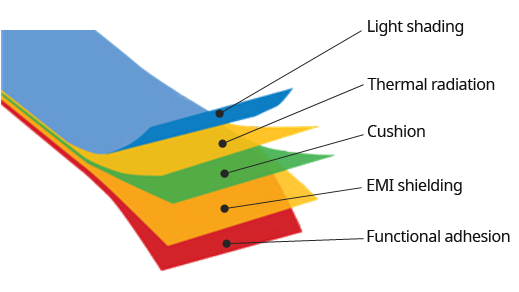

※ Multi Layer/Function

[ Product information ]

Grade P/N
JYHS-		 Function Thickness
(㎛)		 Adhesion
(gf/25mm)		 Resistance (mΩ/in2) Thermal conductivity (through)
(W/mK)		 Liner
Light
shading		 Cushion Heat
radiation		 EMI
shielding		 Conductive type Heat conductive type Horizontal Vertical PET Paper
High-end NCW35 ◎ – ◎ ◎ 35±20% 800↑ X 100↓ 50↓ X ◎ X
NCW50 ◎ – ◎ ◎ 50±10% 1,000↑ X 100↓ 50↓ X ◎ X
NCW-C160 ◎ ◎ ◎ ◎ 160±15% 1,000↑ X 100↓ X X X ◎
Middle-

end

 NW40 – – ◎ ◎ 40±10% 800↑ X 100↓ 50↓ X ◎ X
NW50 – – ◎ ◎ 50±10% 1,000↑ X 100↓ 50↓ X ◎ X
NW-C150T – ◎ ◎ – 150±10% X 700↑ X X 1.5↑ X ◎
NC-C160T ◎ ◎ ◎ – 160±10% X 700↑ X X 1.5↑ X ◎
Low-end CW30 ◎ – – ◎ 30±10% 800↑ X 100↓ 50↓ X ◎ X
CW45 ◎ – – ◎ 45±10% 1,000↑ X 100↓ 50↓ X ◎ X
CW35T ◎ – ◎ – 35±10% X 700↑ X X 1.5↑ ◎ X

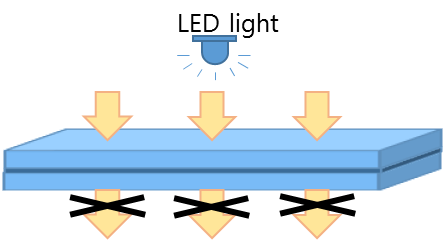

Light shading Thermal radiation Cushion, Shockproof
